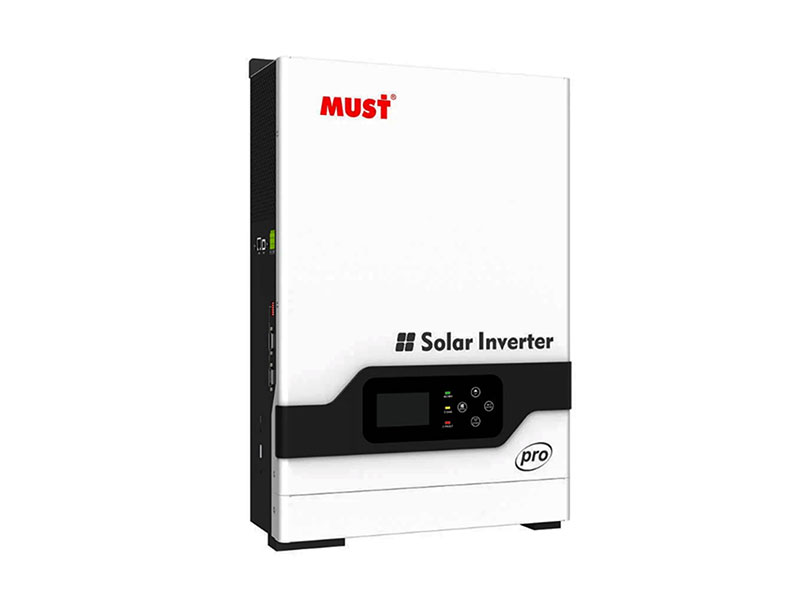

Invertor solar Off-grid 3Kw 24V PRO Alien

Nominal Battery System Voltage               24VDC

INVERTER OUTPUT

Rated Power      3000VA / 3000W

Surge Power      6000W

Waveform          Pure sine wave

AC Voltage Regulation (Batt.Mode)         230VAC±5%(Setting)

Inverter Efficiency(Peak)              93%

Transfer Time    10ms (UPS / VDE4105) / 20ms (APL)

AC INPUT

Voltage 230VAC±5%

Selectable Voltage Range             170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)

Frequency Range             50Hz / 60Hz(Auto sensing)

BATTERY

Normal voltage 24VDC

Floating Charge Voltage 27.4VDC

Overcharge Protection  30VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage               450VDC

Maximum PV current     18A

PV Array MPPT Voltage Range    150~430 VDC

Maximum Solar Charge Current 80Amp

Maximum AC Charge Current     60Amp

Maximum Charge Current            80Amp

MECHANICAL SPECIFICATIONS

Machine Dimensions (W*H*D)(mm)       272*355*100

Package Dimensions (W*H*D)(mm)        540*395*241

Net Weight(kg) 11

Gross Weight(kg)             12

OTHER

Humidity              5% to 95% Relative humidity (Non-condensing)

Operating Temperature 0°C~50°C

Storage Temperature     -15? ~60?
